| 電動昇降装置 movetec 油圧式同調シリンダー昇降装置 |

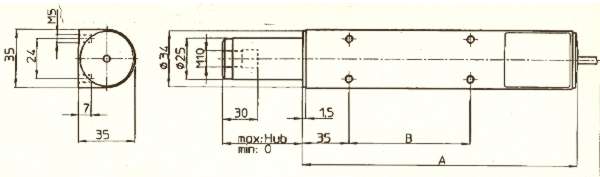

| ■シリンダー外形寸法（単位㎜） |
 |
| Cylinder |
Hub
Stroke |
A（㎜） |
B（㎜） |
| CB1415 |
150 |
258.5 |
165 |
| CB1420 |
200 |
333.5 |
240 |
| CB1430 |
300 |
458.5 |
340 |
| CB1440 |
400 |
558.5 |
340 |
| CB1450 |
500 |
683.5 |
450 |
| CB1427 |
270 |
428.5 |
340 |
| CB1445 |
450 |
608.5 |
390 |
|

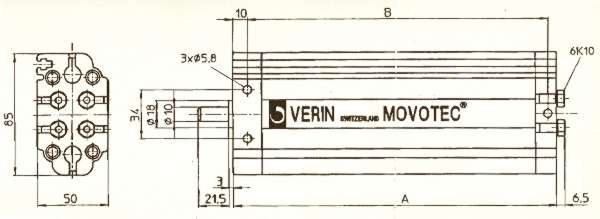

| ■ポンプ外形寸法（単位㎜） |
 |
| Pump |
Hub
Stroke |
A（㎜） |
B（㎜） |
| PB3809 |
90 |
284.5 |
268.5 |
| PB3812 |
120 |
344.5 |
328.5 |
| PB3818 |
180 |
464.5 |
448.5 |
| PB3824 |
241 |
586.5 |
570.5 |
| PB3831 |
305 |
714.5 |
698.5 |
| PB4809 |
90 |
284.5 |
268.5 |
| PB4812 |
120 |
344.5 |
328.5 |
| PB4818 |
180 |
464.5 |
448.5 |
| PB4824 |
241 |
586.5 |
570.5 |
| PB4831 |
305 |
714.5 |
698.5 |
| PB4805 |
48.5 |
201.5 |
185.5 |
| PB4813 |
136 |
404.5 |
388.5 |
| PB5809 |
90 |
284.5 |
268.5 |
| PB5812 |
120 |
344.5 |
328.5 |
| PB5818 |
180 |
464.5 |
448.5 |
| PB5824 |
241 |
586.5 |
570.5 |
| PB6809 |
90 |
284.5 |
268.5 |
| PB6812 |
120 |
344.5 |
328.5 |
| PB6818 |
180 |
464.5 |
448.5 |
| PB6824 |
241 |
586.5 |
570.5 |
| PB4808 |
79 |
284.5 |
268.5 |
|

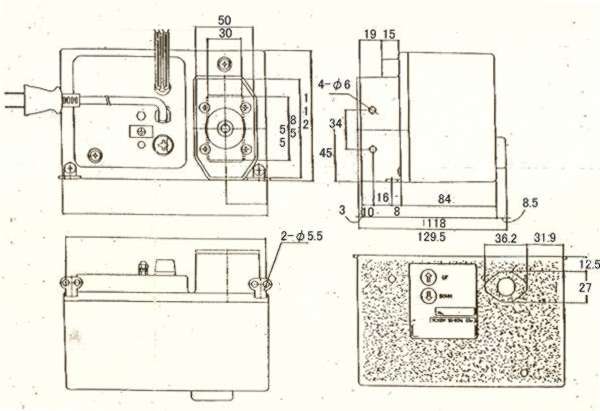

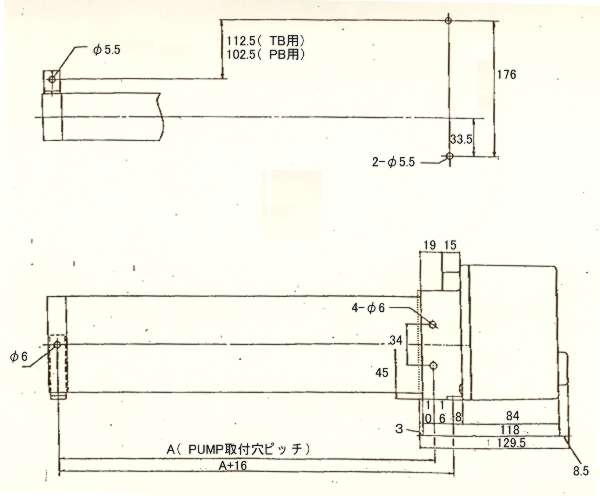

| ■電動モーター外形寸法（単位㎜） |
 |
 |
